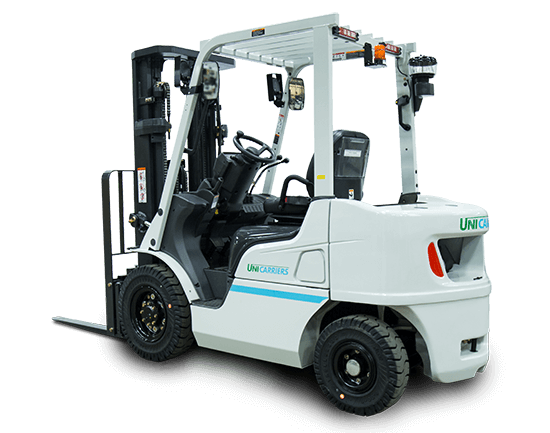

PFD Series (Diesel) capacity 4,000-7,000 lb. (PFD40M-PFD70M)
The PFD40M-PFD70M series come standard with some of the most advanced performance, security and operator comfort features available anywhere.
Click here for more information.
| Model | Basic Capacity (lbs) | Maximum Fork Height ² | Voltage (or Fuel Type) | Length To Fork Face | Chassis Width (in) | Chassis Height (in) ¹ | Gross Weight (lbs) ¹ |
| PFD40M | 4,000 | 131.5 | Diesel | 98 | 39.5 | 82.9 | 7,610 |
| PFD50M | 5,000 | 131.5 | Diesel | 100 | 39.5 | 82.9 | 8,210 |
| PFD60M | 6,000 | 130.5 | Diesel | 107 | 39.5 | 83.7 | 9,640 |
| PFD70M | 7,000 | 131.5 | Diesel | 110 | 39.5 | 84.3 | 10,590 |
features
Versatility and Value
With a common rail fuel injection system and 3.3L EPA/CARB Diesel Tier 4 industrial engine provides exceptional versatility and power. Along with its Operator Comfort System, which isolates the operator from engine and transmission vibration, this forklift is your dependable and comfortable material handling solution.
Our Seat Supports Your Driver and Your Productivity
The lumbar support and weight adjustments create customized comfort for the operator, while a non-cinching seatbelt allows a wider range of movement. The full suspension design absorbs shocks for a smoother, more comfortable ride — and it’s all standard on Platinum II Series forklifts.
More Power, More Efficiency

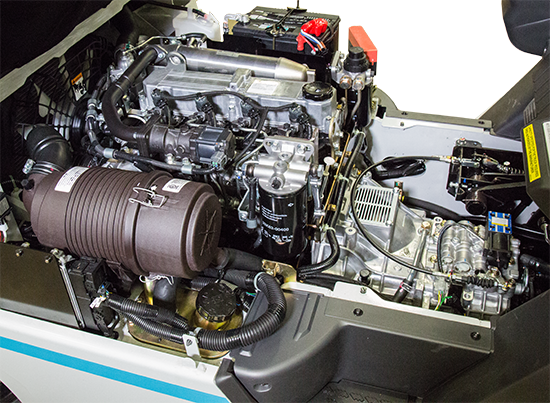

Advanced engine technology makes it possible for our 4 EG diesel engine to deliver greater torque at lower RPMs. Utilizing common rail fuel delivery and the latest technology for exhaust after treatment, this Tier 4 engine is a workhorse!
Maximum Performance
The PD drivetrain has the technology, power and certifications to perform as needed in a wide range of applications. Suited for the efficiency of today’s demanding needs, the 4EG diesel produces while being fuel efficient. The operator’s compartment is also designed to help the operator achieve optimum productivity, but with great comfort.
More Power, More Efficiency

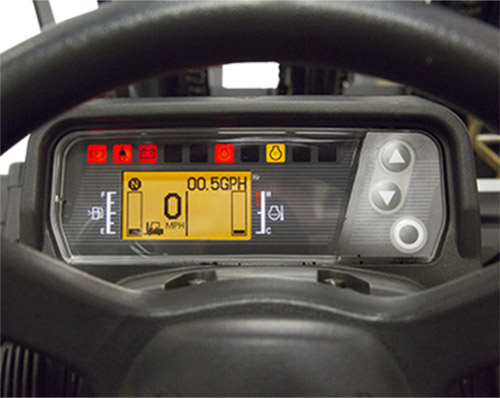

Controls are logically placed and efficient to use to make the operator’s compartment more comfortable. Our generous foot room and pedal placement help contribute your operator to be more productive and less fatigued.
