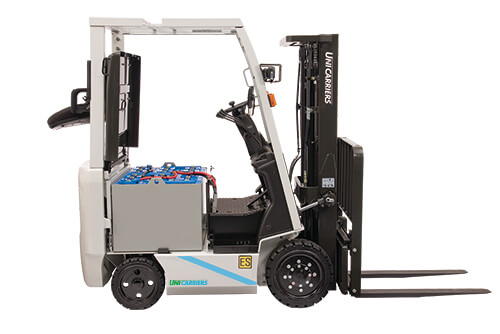

BXC Series Cushion Electric Forklift capacity 3,000-8,000 lb. (BXC30N-BXC80N)
The BXC30N-BXC80N electric counterbalanced forklift series combines a capacity of up to 8,000 lbs. and exceptional power efficiency. Greater performance, higher capacity and advanced features make the BX the right choice for demanding applications.
Click here for more information.
| Model | Basic Capacity (lbs) | Maximum Fork Height ² | Voltage (or Fuel Type) | Length To Fork Face | Chassis Width (in) | Chassis Height (in) ¹ | Gross Weight (lbs) ¹ |
| BXC30N | 3,000 | 130 | 36/48 | 80.9 | 38.2 | 86.2 | 6,550 |
| BXC35N | 3,500 | 130 | 36/48 | 81.3 | 38.2 | 86.2 | 6,945 |
| BXC40N | 4,000 | 130 | 36/48 | 84.8 | 42.1 | 87.4 | 8,090 |
| BXC40R | 4,000 | 130 | 36/48 | 84.8 | 42.1 | 87.4 | 8,090 |
| BXC50N | 5,000 | 130 | 36/48 | 86.2 | 42.1 | 87.4 | 8,950 |
| BXC50R | 5,000 | 130 | 36/48 | 86.2 | 42.1 | 87.4 | 8,090 |
| BXC50LN | 5,000 | 130 | 36/48 | 90.7 | 42.1 | 87.4 | 8,820 |
| BXC60N | 6,000 | 130 | 36/48 | 94.1 | 43.3 | 87.4 | 10,550 |
| BXC65N | 6,500 | 138 | 36/48 | 96.5 | 43.3 | 87.4 | 11,395 |
| BXC80N | 8,000 | 138 | 36/48 | 100.2 | 43.3 | 87.4 | 12,380 |
features
Versatility And Value
The high-performance BX Series is a versatile lift truck that combines a capacity of up to 8,000 lb and exceptional power efficiency with an advanced feature package that includes self-contained onboard diagnostics and controlled rollback.
Minimize Preventable Repairs

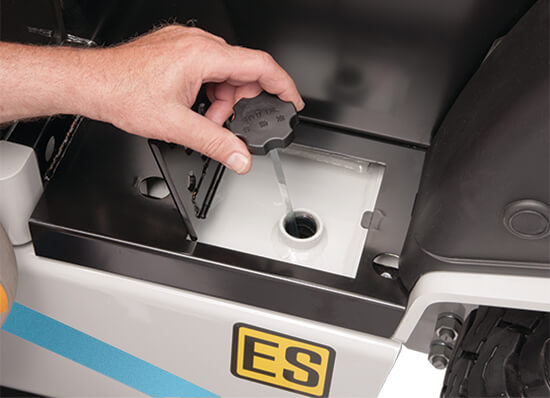

Operators are more likely to perform regular lift truck inspections if they are easy to do. Access to hydraulic and brake fluids is convenient, making daily checks or required refills simple, so operators can focus on the job ahead.
Simplified Battery Maintenance & Replacement
Gas stay assist keeps the hood open nearly 90° making routine battery maintenance and change-outs faster. Optional rollout design further simplifies battery removal.
Fewer Motors to Maintain
The 100% AC-powered system on the BX features brushless drive and pump motors and a single contactor. The steering system is electronically controlled and powered through the hydraulics, thus eliminating the need for — and added expense of — a separate steering motor.
Comfort Zone
The lumbar support and weight adjustments create customized comfort for the operator, while a non-cinching seatbelt allows a wider range of movement. The full suspension design absorbs shocks for a smoother, more comfortable ride — and it’s all standard on BX Series four-wheel electric forklifts.
Watch Product Video
Discover the reliable, versatile BX series of 100% AC Powered Electric, 4-wheel sit-down forklifts in 3,000 to 8,000 lb. capacities!
