WSX Series Walkie Staddle Stacker capacity 3,000-3,500 lb

Home / New Equipment / WSX Series Walkie Staddle Stacker capacity 3,000-3,500 lb

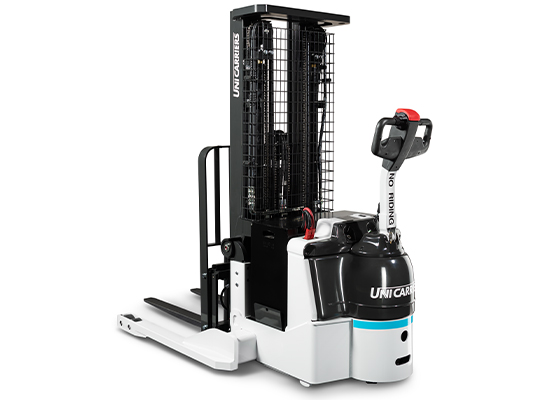

With lift heights of up to 18 feet and fluid, virtually effortless maneuverability — all of the performance you’re looking for comes together in an electric walkie stacker forklift that’s intuitive to operate, easy to maintain and economical to purchase.

Click here for more information.

Model Basic Capacity (lbs) Maximum Fork Height ² Voltage (or Fuel Type) Length To Fork Face Chassis Width (in) Chassis Height (in) ¹ Gross Weight (lbs) ¹
WSX30 3,000 152 24 78.3 32.4 48.7 2,800
WSX30S 3,000 152 24 78.3 32.4 44.2 2,735
WSX40 4,000 152 24 78.3 32.4 48.7 2,800
WSX40S 4,000 152 24 78.3 32.4 44.2 2,735
features

Our AC Motor Does More For Less

Greater torque and faster speeds are only the beginning of what our proven 5.2 HP brushless AC drive motor delivers. This 24V system features an advanced motor controller/AC inverter that distributes consistent power as needed to the AC drive motor or the heavy-duty DC pump motor.  The result? Consistently high performance across the battery range, with longer run times between charging.

Reach Higher

At 217 inches (18 feet), our lift height is among the highest in the industry — sized just right for two and three shelf racking. The flat face mast design features rolled steel channels, large cross sections, and thick inner rails for increased capacity retention.

A Turn for the Better

You’ll get the exceptional stability that comes from the WSX model’s wide wheelbase and tight turning radius.  Its 190º steering arc, ball-bearing steering mechanism, large steering control head, and spring-loaded handle all contribute to easily navigating in the tightest of spaces.

Smart Electric Brake

Regenerative motor torque, proportional plugging and our spring-applied electronically released disc brake work together to reduce component wear, extend part life and eliminate the need for adjustments.
